EDGE
RECESSED PANEL
RECESSED PANEL
26W
Power3000lm
Luminous flux110°
Beam anglePATENTED PRODUCT
The Edge panels are distinguished by their ultra-thin borders, which further improve the product’s high luminous efficacy and the uniform effect provided by backlighting.
| Luminous efficacy | 115lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polycarbonate |
| Operation temperature | -10 ~ 40°C |
| Warranty | 2 years |
X
| STL22954BR/30 | White | 100-240Vac | 3000K | 3000lm |
| STL22954BR/40 | White | 100-240Vac | 4000K | 3000lm |
Graphics

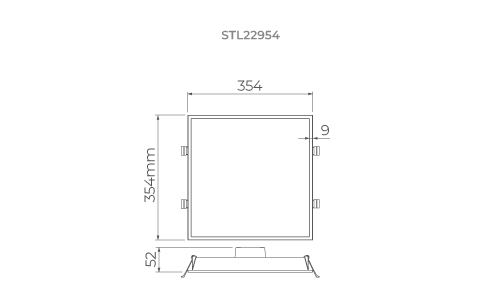

Technical drawing
Documents
STELLA - STL22954BR-30 - EDGE 26W.ies
STL22954BR_30_40_50.skp
STELLA - STL22954BR-30 - PACK - SKP.zip
Manual Painel de Embutir Edge STL22951_STL22952_STL22953_STL22954_V2-0.pdf
STL22954BR_30_40_50.rfa
STL22954_GABARITO_CORTE.pdf
STELLA - STL22954BR-40 - EDGE 26W.ies
STELLA - STL22954BR-40 - PACK - SKP.zip
Observations
Fixation clips included.
Built-in driver.
