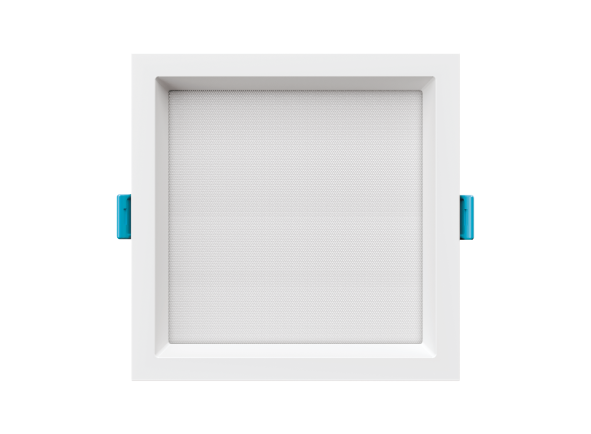

S.Deep
SUPER RECESSED PANEL | DIMMABLE
SUPER RECESSED PANEL | DIMMABLE
10W
Power750lm
Luminous flux85°
Beam anglePATENTED PRODUCT
Stella introduces the S.DEEP series, in which the functionality of dimmable recessed panels meets the elegance of Stella’s signature creations. The product’s remarkable recessed light source provides a sense of depth and visual refinement while the backlighting allows for an uniform light distribution. S.DEEP’s high CRI delivers superior color fidelity and its high power factor highlights the recessed panel’s superior performance. This product’s models are UGR19 compliant and efficiently reduce glare effects, presenting an ideal solution to illuminating both work environments and residences
| Luminous efficacy | 40lm/W to 80lm/W |
| CRI (Color rendering index) | >93(R9 >60) |
| UGR (Unified glare rating) | <19 |
| Dimming | 20-100% |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Prevailing material | Polypropylene |
| Warranty | 2 years |
| Operation temperature | -10 ~ 40°C |
X
| STL24907PTO/30 | Black | 100-240Vac | 3000K | 400lm | 100-240V |
| STL24907BR/30 | White | 100-240Vac | 3000K | 750lm | 100-240V |
| STL24907PTO/40 | Black | 100-240Vac | 4000K | 400lm | 100-240V |
| STL24907BR/40 | White | 100-240Vac | 4000K | 800lm | 100-240V |
3D
Click to move image
Graphics

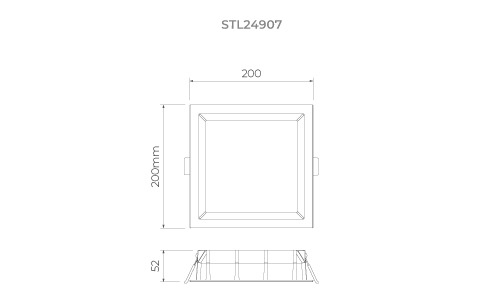

Technical drawing
Documents
Observations
Fixation clips included.
Driver Included
