S.Deep
SUPER RECESSED PANEL | DIMMABLE
SUPER RECESSED PANEL | DIMMABLE
36W
Power3400lm
Luminous flux85°
Beam anglePATENTED PRODUCT
Stella introduces the S.DEEP series, in which the functionality of dimmable recessed panels meets the elegance of Stella’s signature creations. The product’s remarkable recessed light source provides a sense of depth and visual refinement while the backlighting allows for an uniform light distribution. S.DEEP’s high CRI delivers superior color fidelity and its high power factor highlights the recessed panel’s superior performance. This product’s models are UGR19 compliant and efficiently reduce glare effects, presenting an ideal solution to illuminating both work environments and residences.
| Luminous efficacy | 78lm/W to 97lm/W |
| CRI (Color rendering index) | >93(R9 >60) |
| UGR (Unified glare rating) | <19 |
| Dimming | 20-100% |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polypropylene |
| Warranty | 2 years |
X
| STL24911PTO/30 | Black | 127Vac | 3000K | 2800lm | 127V |
| STL24911BR/30 | White | 127Vac | 3000K | 3400lm | 127V |
| STL24911PTO/40 | Black | 127Vac | 4000K | 2900lm | 127V |
| STL24911BR/40 | White | 220Vac | 4000K | 3500lm | 127V |
| STL24912PTO/30 | Black | 220Vac | 3000K | 2800lm | 220V |
| STL24912BR/30 | White | 220Vac | 3000K | 3400lm | 220V |
| STL24912PTO/40 | Black | 220Vac | 4000K | 2900lm | 220V |
| STL24912BR/40 | White | 220Vac | 4000K | 3500lm | 220V |
3D
Click to move image

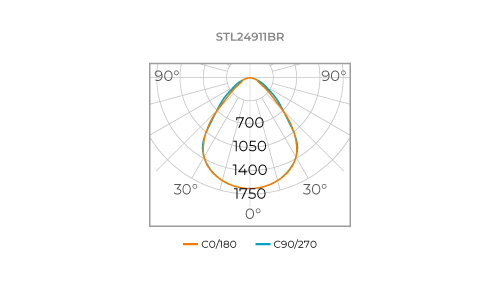

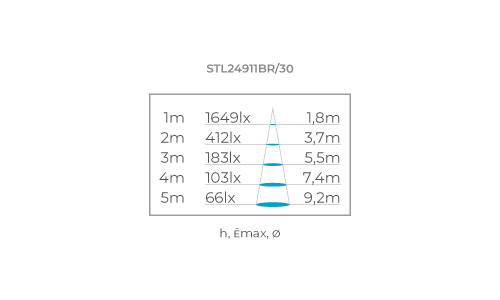

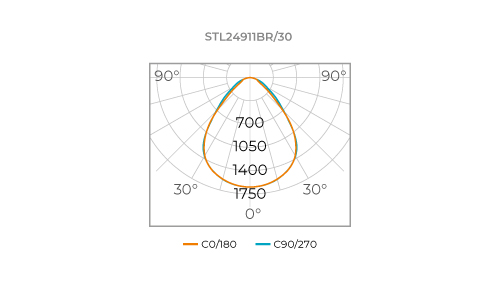

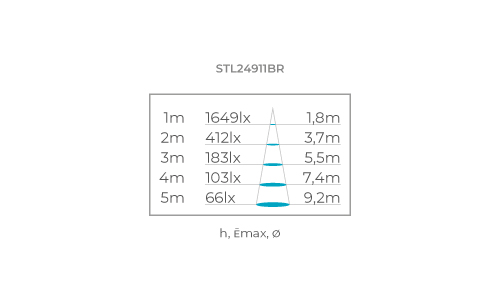

Graphics

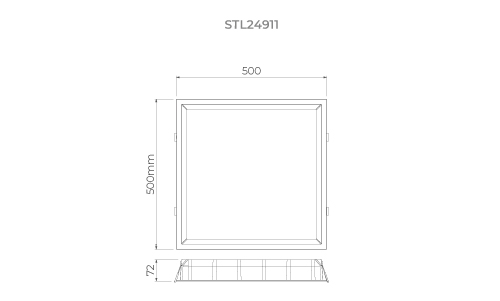

Technical drawing
Documents
STELLA - STL24911PTO-30 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W.ies
STELLA - STL24911BR-30-40 - STL24911PTO-30-40 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W_PACK.zip
STL24911BR_30_40_STL24911PTO_30_40.skp
MANUAL_S.DEEP_STL24907_STL24908_STL24909_STL24910_STL24911_STL24912_V1 2 (1).pdf
STL24911BR_30_40_STL24911PTO_30_40.rfa
STELLA - STL24911BR-30 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W.ies
STELLA - STL24911PTO-40 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W.ies
STELLA - STL24911BR-40 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W.ies
STELLA - STL24912PTO-30 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W.ies
STELLA - STL24912BR-30-40 - STL24912PTO-30-40 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W_PACK.zip
STL24912BR_30_40_STL24912PTO_30_40.skp
STL24912BR_30_40_STL24912PTO_30_40.rfa
STELLA - STL24912BR-30 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W.ies
STELLA - STL24912PTO-40 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W.ies
STELLA - STL24912BR-40 - PAINEL DE EMBUTIR SUPER RECUADO S.DEEP 36W.ies
Observations
Fixation clips included.
Driver Included.
