12V Mini Mobili
Cabinet Downlight 25° Narrow Beam
Cabinet Downlight 25° Narrow Beam
2W
Power140lm
Luminous flux25°
Beam anglePATENTED PRODUCT
The Mobili line is distinguished by its ultracompact design, that allows for a broad range of applications. This series has wide and narrow beam options and integrated and recessed light sources. There are also extra low voltage options in a compact structre, with only 19mm of overall height. These cabinet downlighhts are ideal for highlighting objects and elements.
| Luminous efficacy | 70lm/W |
| CRI (Color rendering index) | >90(R9 >50) |
| Power factor | > |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate + ABS |
| Warranty | 2 years |
X
| STL22917BR/27 | White | 12Vcc | 12V | 2700K | 140lm |
Video
Graphics

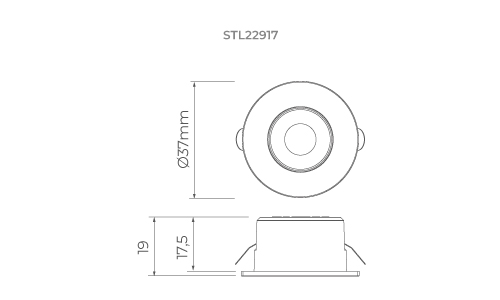

Technical drawing
Documents
Observations
To be used only with Stella’s 12V Drivers
