Mini Mobili
Cabinet Downlight 25° Narrow Beam
Cabinet Downlight 25° Narrow Beam
1,5W
Power150lm
Luminous flux25°
Beam anglePATENTED PRODUCT
The Mobili line is distinguished by its ultracompact design, that allows for a broad range of applications. This series has wide and narrow beam options and integrated and recessed light sources. There are also extra low voltage options in a compact structre, with only 19mm of overall height. These cabinet downlighhts are ideal for highlighting objects and elements.
| Luminous efficacy | 87lm/W to 100lm/W |
| CRI (Color rendering index) | >90(R9 >50) |
| Power factor | >0,4 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate + ABS |
| Warranty | 2 years |
X
| STL21911PTO/30 | Black | 100-240Vac | 100-240V | 3000K | 140lm |
| STL21911BR/27 | White | 100-240Vac | 100-240V | 2700K | 140lm |
| STL21911PTO/27 | Black | 100-240Vac | 100-240V | 2700K | 130lm |
| STL21911BR/30 | White | 100-240Vac | 100-240V | 3000K | 150lm |
Video
Graphics

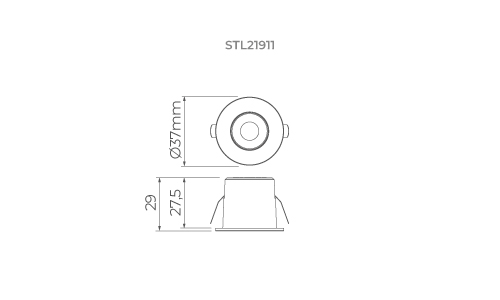

Technical drawing
Documents
STELLA - STL21911PTO-30 - MINI MÓBILI REDONDO 1,5W.ies
STELLA - STL21911BR-27-30 - STL21911PTO-27-30 - MINI MÓBILI REDONDO 1,5W_PACK.zip
STL21911BR_27_30_STL21911PTO_27_30.skp
Manual Mini Móbili.pdf
STL21911BR_27_30_STL21911PTO_27_30.rfa
STELLA - STL21911BR-27 - MINI MÓBILI REDONDO 1,5W.ies
STELLA - STL21911PTO-27 - MINI MÓBILI REDONDO 1,5W.ies
STELLA - STL21911BR-30 - MINI MÓBILI REDONDO 1,5W.ies
Photos
Not added.
Observations
Built-in driver
