Ultrathin 24V DIM Driver
Dualcut
Dualcut
75W
Max power outputPATENTED PRODUCT
The Ultrathin PRO DUALCUT DIM Driver is a step-up for dimming products’ performances. Developed by Stella, this launch features the DUALCUT system, that allows for a more precise brightness control, for both Leading and Trailing Edge Dimming. Compatible with all 12Vdc and 24Vdc Stella products, this new driver offers greater eletrical safety, resistance against surges and protection against power overloads. Besides the products’ compact and elegant design, Ultrathin PRO DUALCUT DIM Drivers are distinguished by their fixation system by click, that ensures a practical installation.
| Input voltage | 100-240Vac |
| Output voltage | 24Vcc |
| Input current | 1,25A (127V) / 0,92A (220V) |
| Maximum output current | 3,12A |
| Power factor | >0,4 |
| Warranty | 2 years |
X
| STL23688 | 100-240Vac | IP20 |
3D
Click to move image

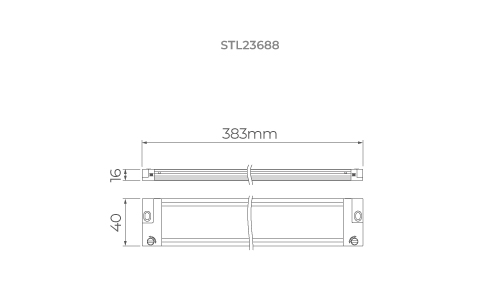

Technical drawing
Documents
