24V Driver DIM
Dimmable
Dimmable
40W
Max power output
Stella drivers can be used up to 100% of their total power, ensuring the products' top-notch performance.
| Input voltage | 100-240Vac |
| Output voltage | 24Vcc |
| Input current | 0,72A (127V) / 0,52A (220V) |
| Maximum output current | 1,6A |
| Power factor | >0,5 |
| Warranty | 2 anos |
| Operation temperature | -10 ~ 40°C |
| Apparent power 127V | 86,1VA |
| Apparent power 220V | 102VA |
X
| STH8899 | 100-240Vac | IP20 |

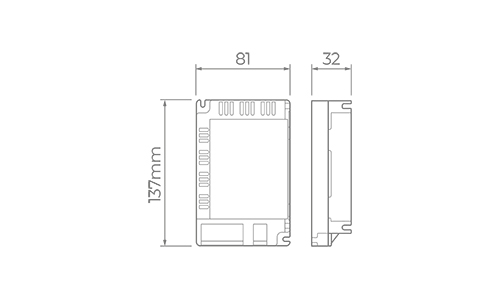

Technical drawing
Observations
* Input voltage should be adjusted at the switch selector, as indicated on the product.
Product available while stocks last.
