MR11 EVO DIM
DIMMABLE
DIMMABLE
4W
Power230lm
Luminous flux30°
Beam angle
EVO lamps are the evolution of standard Stella products, with specific features to enrich your lighting project.
| Base | GU10 |
| Luminous efficacy | 57lm/W |
| Luminous intensity | 700cd |
| CRI (Color rendering index) | >90(R9 >50) |
| Dimming | 20-100% |
| Lifespan | 25000h |
| Power factor | >0,4 |
| Warranty | 2 years |
X
| STH7530/27 | 100-240Vac | 100-240V | 2700K | 230lm | 30° |

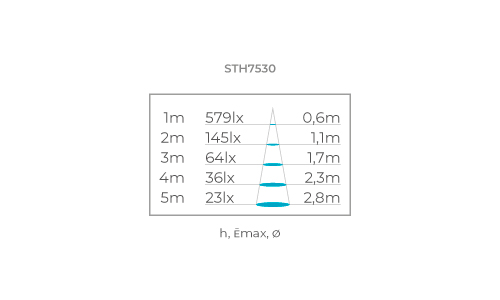

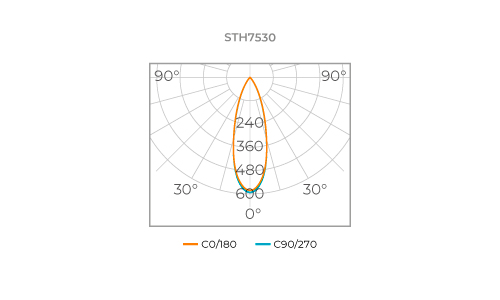

Graphics

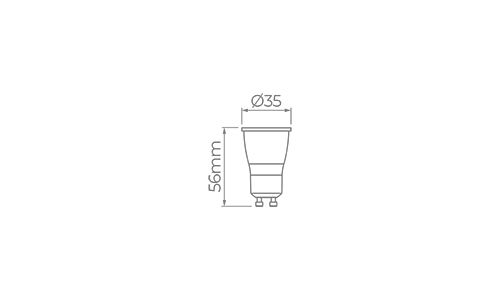

Technical drawing
Documents
Observations
* Luminous intensity and Incandescent Equivalence data refers to LED lamps sold from batches L.150225 (for reference STH7530/27). Up to batch L.140824, the following data should be considered:
Luminous intensity STH7530/27: 550cd
Incandescent Equivalence STH7530/27: 20W
