Archi

Surface Mounted Profile 24V | 35mm | Recessed White Diffuser

28W/m

Power/m

550lm/m

Luminous flux/m

80°

Beam angle

Like the recess mounted profiles, the surface mounted versions of the Archi line have a rectilinear design and homogeneous lighting. Available in options with flat or recessed diffusers, these products are installed with 24V LED strips with, on average, 120LEDs/m, and have a nonapparent fastening system.

Total power	28W and 56W
Voltage (Vcc)	24Vcc
LED specifications	2x 120 LEDs SMD2835/m
CRI (Color rendering index)	>93(R9 >60)
UGR (Unified glare rating)	13,4
Lifespan	25000h
Prevailing material	Aluminum
Warranty	2 years

Compare

STH21973PTO/27	Black \| White diffuser	1m	2700K	550lm
STH21974PTO/27	Black \| White diffuser	2m	2700K	1100lm

Graphics

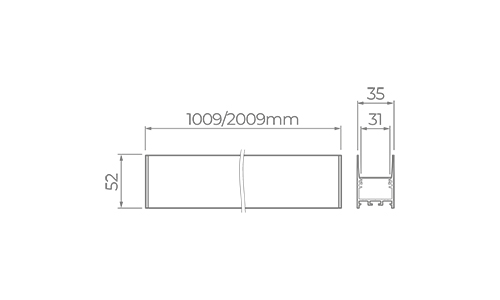

Technical drawing

Documents

STELLA - STH21973PTO-27 - ARCHI -PERFIL DE SOBREPOR 35mm.ies

STELLA - STH21973PTO-27 - ARCHI -PERFIL DE SOBREPOR 35mm_PACK.zip

STH21973PTO_27.skp

Manual Perfil Archi - Sobrepor Versão 5.0.pdf

STH21973BR_27_STH21973PTO_27.rfa

STELLA - STH21974PTO-27 - ARCHI -PERFIL DE SOBREPOR 35mm.ies

STELLA - STH21974PTO-27 - ARCHI -PERFIL DE SOBREPOR 35mm_PACK.zip

STH21974PTO_27.skp

STH21974BR_27_STH21974PTO_27.rfa

Observations

End caps and fixation clips included.

STH21973PTO/27, STH21974PTO/27 - Product available while stocks last.
