Trace
Ambient Light Luminaire
Ambient Light Luminaire
25W
Power1400lm
Luminous flux80°
Beam anglePATENTED PRODUCT
Trace is a new recessed and surface track that allows the combined installation of five different types of luminaires. The system offers models with a high color reproduction index and options of ambient, accent or angular lighting. A signature creation by Stella, it also features the exclusive Trace Connector, a switch with a discreet finishing cover to facilitate the installation.
| Luminous efficacy | 36lm/W to 58lm/W |
| CRI (Color rendering index) | >93(R9 >60) |
| Power factor | >0,4 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STL22461PTO/30 | Black | 100-240Vac | 3000K | 900lm |
| STL22461PTO/40 | Black | 100-240Vac | 4000K | 950lm |
| STL22461BR/40 | White | 100-240Vac | 4000K | 1450lm |
| STL22461BR/30 | White | 100-240Vac | 3000K | 1400lm |

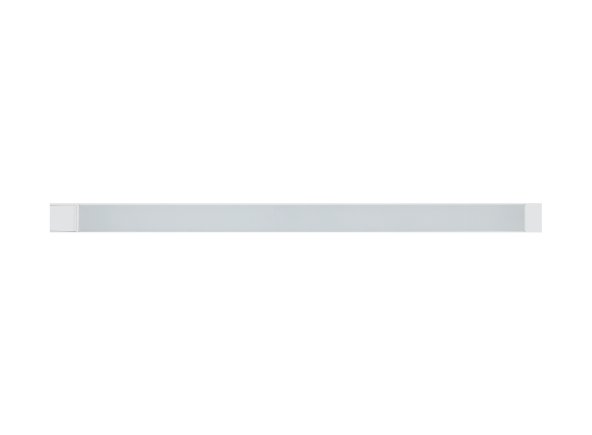

Photos

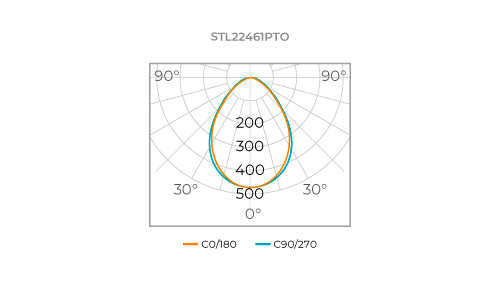

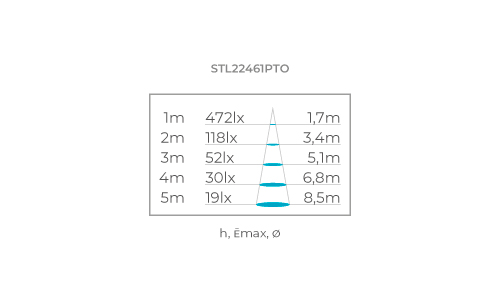

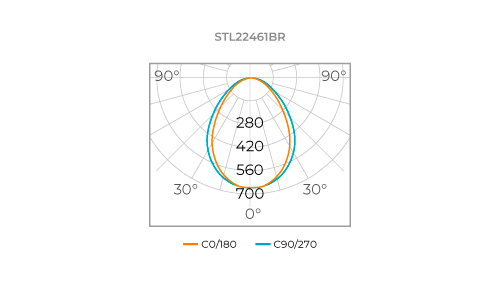

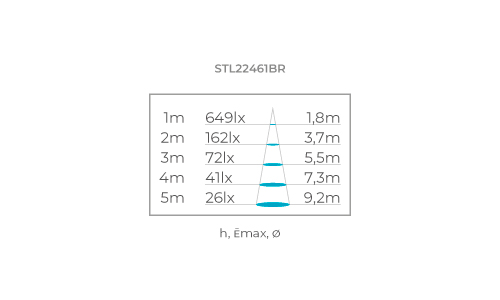

Graphics

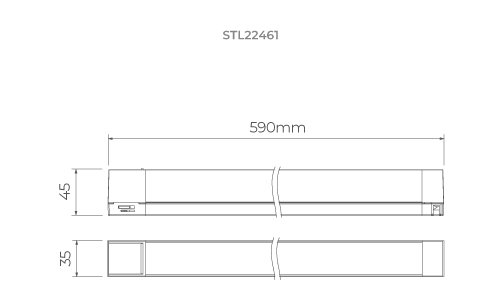

Technical drawing
Documents
STELLA - STL22461PTO-30 - TRACE 25W - LUMINÁRIA DE LUZ GERAL.ies
STELLA - STL22461BR-30-40 - STL22461PTO-30-40 - TRACE 25W_PACK.zip
STL22461BR_30_40_STL22461PTO_30_40.skp
Manual Trace - Luminárias.pdf
STL22461BR_30_40_STL22461PTO_30_40.rfa
STELLA - STL22461PTO-40 - TRACE 25W - LUMINÁRIA DE LUZ GERAL.ies
STELLA - STL22461BR-40 - TRACE 25W - LUMINÁRIA DE LUZ GERAL.ies
STELLA - STL22461BR-30 - TRACE 25W - LUMINÁRIA DE LUZ GERAL.ies
Observations
Install with Trace Track only (STL22401BR, STL22401PTO, STL22403BR, STL22403PTO, STL22404BR, STL22404PTO, STL22406BR e STL22406PTO).
