S.GROUND
LED SPIKE
LED SPIKE
18,5W
Power1500lm
Luminous flux36°
Beam angle
The S.GROUND series was conceived from scratch, with a focus on optimal performance for outdoor lighting. Its advanced project was designed to maintain maximum impermeability and deliver a set of distinguishing features, such as electrical safety, a precise light effect and the visual comfort that is always provided by Stella signature creations.
| Luminous efficacy | 81lm/W and 83lm/W |
| Luminous intensity | 3800cd and 4500cd |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP67 |
| Power factor | >0,92 |
| Lifespan (L70) | 25000h |
| Operation temperature | -10 ~ 40°C |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STL23756/30 | Black | 100-240Vac | 3000K | 1500lm |
3D
Click to move image
Video

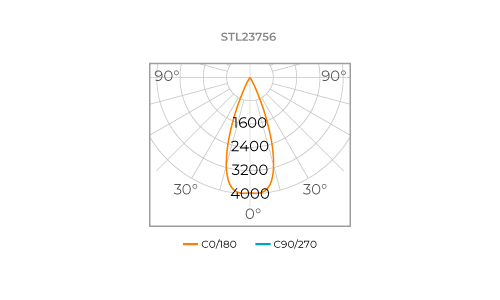

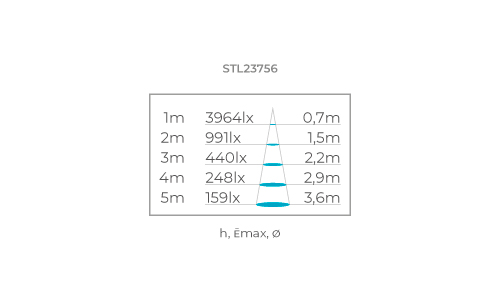

Graphics

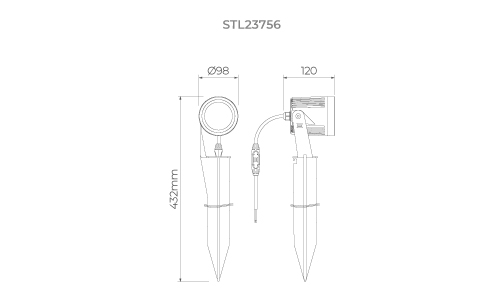

Technical drawing
