FOCCO
LED MINI SPIKE
LED MINI SPIKE
3W
Power150lm
Luminous flux25°
Beam angle
A complete series, that offers options for several outdoor applications. Focco presents LED Ingrounds, Spikes and spotlights in 3000K color temperature, to highlight natural elements and provide comfortable lighting. Their Ingress Protection showcases these products' high resistance when exposed in external spaces
| Luminous efficacy | 50lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP67 |
| Power factor | >0,4 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STH7702/30 | Black | 100-240Vac | 3000K | 150lm |

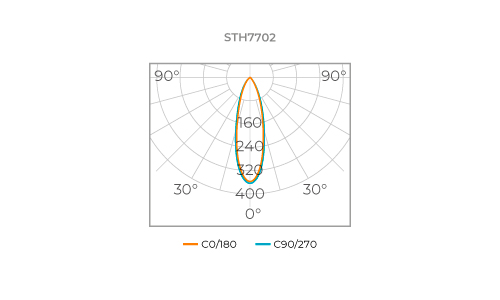

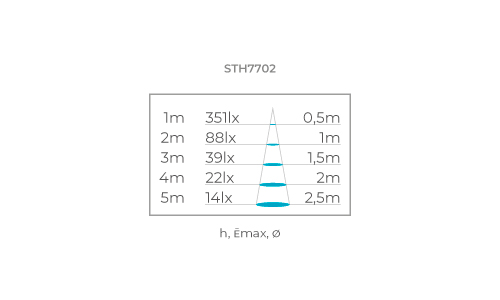

Graphics

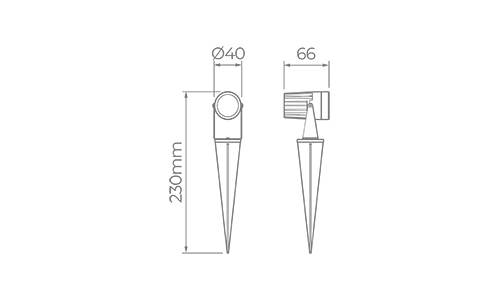

Technical drawing
Documents
Photos
Not added.
Observations
Built-in driver.
Indicated accessory: IP68 Waterproof Wiring Box - STH9799.
