Stella - Fita All Light 24V PRO

Fita All Light 24V PRO

IRC95 | IP67

16W/m

Power/m

950lm/m

Luminous flux/m

EVO, PRO and ULTRA: Stella's new LED Strips line. We present three entirely redesigned series, complete with novel features that are applicable to a variety of projects. All Light PRO LED Strips offer up to 640 LEDs/m, COB technology, high adhesion of 12N/cm² and CRI 95.

Total power	80W
Luminous flux total	4750lm
LED specifications	320 LEDs COB/m
CRI (Color rendering index)	>95(R9 >70)
Adhesion	12N/cm²
Lifespan (L70)	25000h
Roll lenght	5m
Operation temperature	-10 ~ 40°C
Warranty	2 years

Compare

STL25878/24

24Vcc

IP67

2400K

Super warm white

950lm/m

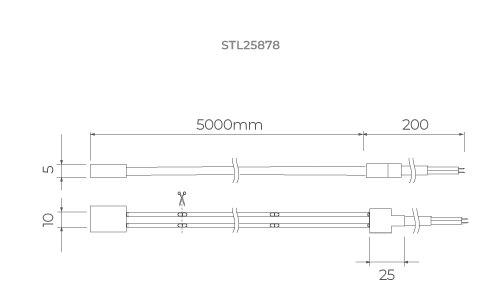

Technical drawing

Fita All Light 24V PRO

Documents

STELLA - STL25878-24 - PACK - SKP.zip

Manual_Fitas_All_Light_PRO_IP67_V1.pdf

Observations

- To avoid loses of total luminous flux, don't connect more than 5m of a 24V LED Strip in series.

- The product must only be installed on clean and dry surfaces.

- Allows cutting every 5cm.

- Curves in a radius smaller than 10mm are not allowed

- It is essential that electrical installations be carried out by qualified professionals

- Use the LED Strip completely unrolled

- To be used with Stella 24V LED Drivers only
