Stella - ALL LIGHT 24V PRO LED STRIP

ALL LIGHT 24V PRO LED STRIP

IP67

16W/m

Power/m

1100lm/m

Luminous flux/m

EVO, PRO and ULTRA: Stella's new LED Strips line. We present three entirely redesigned series, complete with novel features that are applicable to a variety of projects. All Light PRO LED Strips offer up to 640 LEDs/m, COB technology, high adhesion of 12N/cm² and CRI 95.

Total power	80W
Luminous flux total	4750lm to 5500lm
LED specifications	320 LEDs COB/m
CRI (Color rendering index)	>95(R9 >70)
Adhesion	12N/cm²
Cutting distance	5cm
Roll lenght	5m
Operation temperature	-10 ~ 40°C
Lifespan (L70)	25000h
Warranty	2 years

Compare

STL24878/27		24Vcc	2700K	Warm white	1000lm/m
STL25878/24	NEW	24Vcc	2400K	Super warm white	950lm/m
STL24878/30		24Vcc	3000K	Warm white	1100lm/m

Video

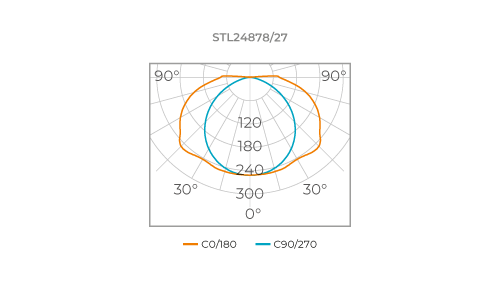

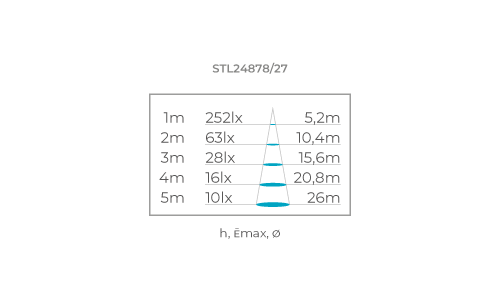

Graphics

ALL LIGHT 24V PRO LED STRIP

ALL LIGHT 24V PRO LED STRIP

Technical drawing

ALL LIGHT 24V PRO LED STRIP

Documents

Manual_Fitas_All_Light_PRO_IP67_V1.pdf

STELLA - STL25878-24 - Fita All Light 24V PRO 16W IP67.ies

STL25878_24.skp

STELLA - STL25878-24 - PACK - SKP.zip

STL25878_24.rfa

STELLA - STL24878-30 - Fita All Light 24V PRO 16W IP67.ies

STL24878_30.skp

STELLA - STL24878-30 - PACK - SKP.zip

MANUAL_FITA ALL_LIGHT_24V_PRO_STL24866_STL24870_STL24878_V1.pdf

Observations

- The product must only be installed on clean and dry surfaces.

- Allows cutting every 5cm.

- Curves in a radius smaller than 10mm are not allowed

- It is essential that electrical installations be carried out by qualified professionals

- Use the LED Strip completely unrolled

- Dimming is possible when using a dimmable 24V Stella LED Driver

- To be used with Stella 24V LED Drivers only
