EASY MR11
LED ADJUSTABLE DOWNLIGHT
LED ADJUSTABLE DOWNLIGHT
3W
Power270lm
Luminous flux38°
Beam angle
Available in several sizes, beam angles and power options, the Easy downlights offer the practicality of an integrated and recessed light source, which reduces glare effects.
| Luminous efficacy | 90lm/W and 93lm/W |
| Luminous intensity | 430cd and 470cd |
| CRI (Color rendering index) | >80 |
| Power factor | >0,4 |
| Lifespan (L70) | 25000h |
| Operation temperature | -10 ~ 40°C |
| Prevailing material | ABS |
| Warranty | 2 years |
X
| STH7910/30 | White | 100-240Vac | 3000K | 270lm |
| STH7910/40 | White | 100-240Vac | 4000K | 280lm |

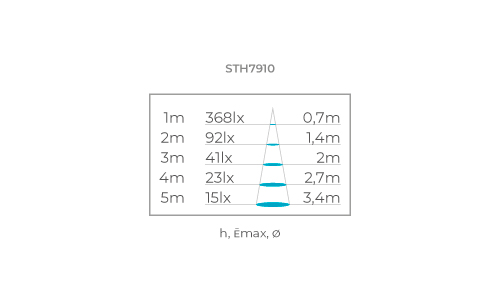

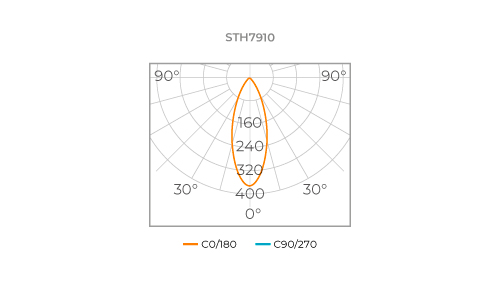

Graphics

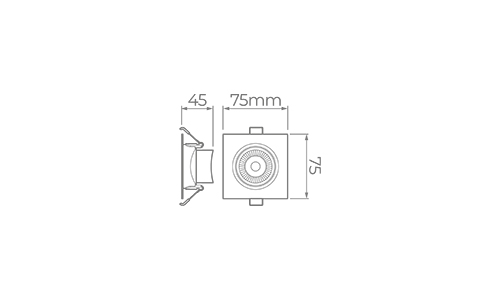

Technical drawing
Documents
Observations
Built-in driver.
* Luminous flux, efficiency and intensity data refers to lighting fixtures sold from batch L.121025 (for reference STH7910/40). Up to batch L.110325 (for reference STH7910/40), the following data should be considered:
Luminous Flux STH7910/40: 220lm
Luminous Efficiency STH7910/40: 73lm/W
Luminous intensity STH7910/40: 470cd
