Deep
RECESSED SURFACE MOUNTED PANEL
RECESSED SURFACE MOUNTED PANEL
28W
Power2800lm
Luminous flux120°
Beam anglePATENTED PRODUCT
Stella brought together functionality and design when developing the Deep line. This panel has a slightly curved recess. An exclusive installation system by click, developed by Stella, facilitates the product’s application on the ceiling. Deep has no side openings, preventing inconveniences, such as accumulation of dust inside the panel. Installation without visible screws.
| Luminous efficacy | 86lm/W to 104lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0.92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STL23905PTO/30 | Black | 100-240Vac | 100-240V | 3000K | 2400lm |
| STL23905PTO/40 | Black | 100-240Vac | 100-240V | 4000K | 2600lm |
| STL23905BR/30 | White | 100-240Vac | 100-240V | 3000K | 2800lm |
| STL23905BR/40 | White | 100-240Vac | 100-240V | 4000K | 2900lm |
3D
Click to move image
Photos
Graphics

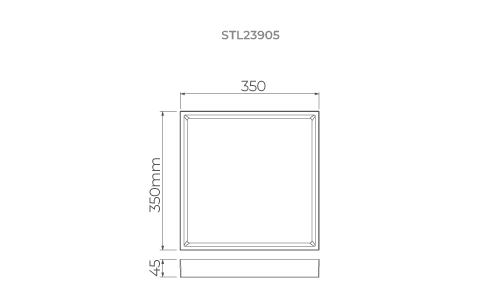

Technical drawing
Documents
STELLA - STL23905PTO-30 - PLAFON DE SOBREPOR RECUADO DEEP 28W .ies
STELLA - STL23905BR-30-40 - STL23905PTO-30-40 - DEEP 28W_PACK.zip
STL23905BR_30_40_STL23905PTO_30_40.skp
Manual Luminaria Deep STH20902_STH20903_STH20904_STL23905_V6-0.pdf
STL23905BR_30_40_STL23905PTO_30_40.rfa
STELLA - STL23905PTO-40 - PLAFON DE SOBREPOR RECUADO DEEP 28W .ies
STELLA - STL23905BR-30 - PLAFON DE SOBREPOR RECUADO DEEP 28W .ies
STELLA - STL23905BR-40 - PLAFON DE SOBREPOR RECUADO DEEP 28W .ies
Observations
Built-in driver.
Fixation system by click.
