DEEP
Recessed Surface Mounted Panel
Recessed Surface Mounted Panel
17W
Power1500lm
Luminous flux120°
Beam anglePATENTED PRODUCT
Stella brought together functionality and design when developing the Deep line. This panel has a slightly curved recess. An exclusive installation system by click, developed by Stella, facilitates the product’s application on the ceiling. Deep has no side openings, preventing inconveniences, such as accumulation of dust inside the panel. Installation without visible screws.
| Luminous efficacy | 76lm/W to 91lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH20903PTO/30 | Black | 100-240Vac | 100-240V | 3000K | 1300lm |
| STH20903BR/40 | White | 100-240Vac | 100-240V | 4000K | 1550lm |
| STH20903BR/30 | White | 100-240Vac | 100-240V | 3000K | 1500lm |
| STH20903PTO/40 | Black | 100-240Vac | 100-240V | 4000K | 1350lm |
3D
Click to move image

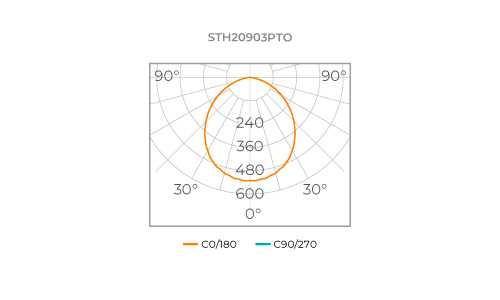

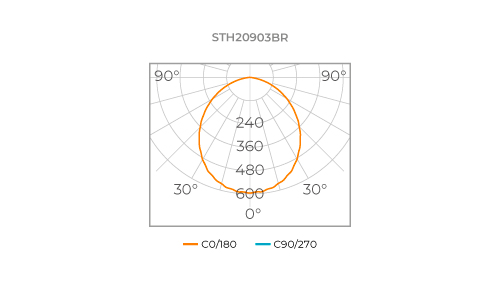

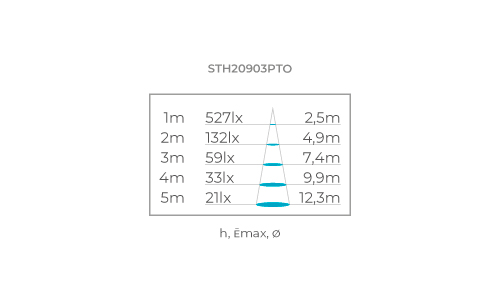

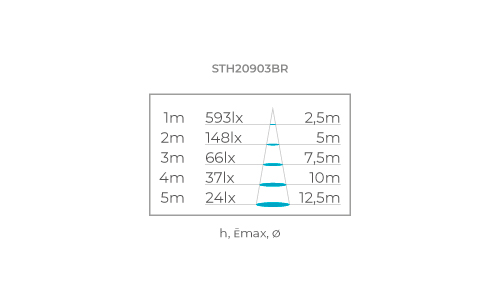

Graphics

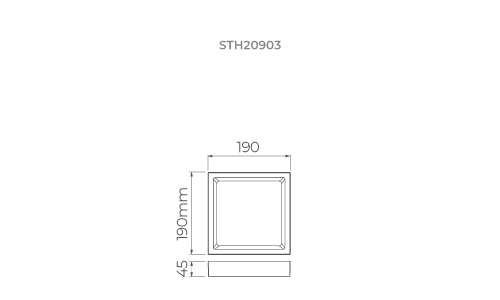

Technical drawing
Documents
STELLA - STH20903PTO-30 - DEEP 18W.ies
STELLA - STH20903BR-30-40 - STH20903PTO-30-40 - DEEP 18W_PACK.zip
STH20903BR_30_40_STH20903PTO_30_40.skp
Manual Luminaria Deep STH20902_STH20903_STH20904_STL23905_V6-0.pdf
STH20903BR_30_40_STH20903PTO_30_40.rfa
STELLA - STH20903BR-40 - DEEP 18W.ies
STELLA - STH20903BR-30 - DEEP 18W.ies
STELLA - STH20903PTO-40 - DEEP 18W.ies
Photos
Not added.
Observations
Built-in driver.
Fixation system by click.
