DEEP
Recessed Surface Mounted Panel
Recessed Surface Mounted Panel
12W
Power1100lm
Luminous flux120°
Beam anglePATENTED PRODUCT
Stella brought together functionality and design when developing the Deep line. This panel has a slightly curved recess. An exclusive installation system by click, developed by Stella, facilitates the product’s application on the ceiling. Deep has no side openings, preventing inconveniences, such as accumulation of dust inside the panel. Installation without visible screws.
| Luminous efficacy | 71lm/W to 96lm/W |
| CRI (Color rendering index) | >80 |
| Power factor | >0,5 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
X
| STH20902PTO/30 | Black | 100-240Vac | 100-240V | 3000K | 850lm |
| STH20902PTO/40 | Black | 100-240Vac | 100-240V | 4000K | 900lm |
| STH20902BR/40 | White | 100-240Vac | 100-240V | 4000K | 1150lm |
| STH20902BR/30 | White | 100-240Vac | 100-240V | 3000K | 1100lm |
3D
Click to move image

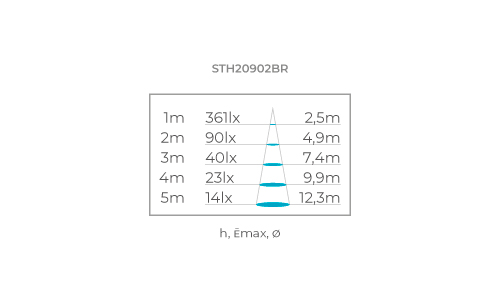

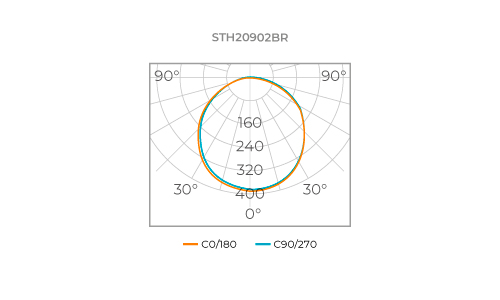

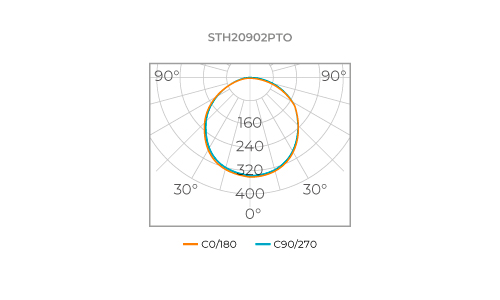

Graphics

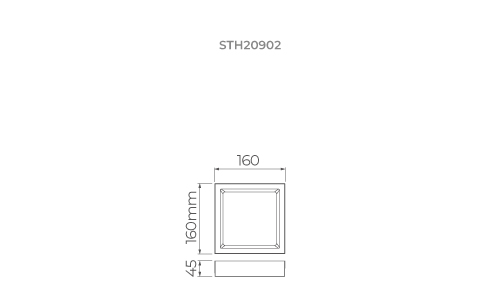

Technical drawing
Documents
STELLA - STH20902PTO-30 - DEEP 12W.ies
STELLA - STH20902BR-30-40 - STH20902PTO-30-40 - DEEP 12W_PACK.zip
STH20902BR_30_40_STH20902PTO_30_40.skp
Manual Luminaria Deep STH20902_STH20903_STH20904_STL23905_V6-0.pdf
STH20902BR_30_40_STH20902PTO_30_40.rfa
STELLA - STH20902PTO-40 - DEEP 12W.ies
STELLA - STH20902BR-40 - DEEP 12W.ies
STELLA - STH20902BR-30 - DEEP 12W.ies
Observations
Built-in driver.
Fixation system by click.
