AR111 PRO

11W

Power

760lm

Luminous flux

10°

Beam angle
PATENTED PRODUCT
stl2142227.jpeg stl2142227lente.jpeg stl21422desenho500x300.jpeg

Precision and intensity are what characterize our ARs PRO’s originality. With options like the 6° and 7° beam angles and dimmable versions, Stella’s ARs PRO offer several lighting possibilities for highlighting elements or for adding a scenic light to any space.

Base GU10
Luminous efficacy 67lm/W to 70lm/W
Luminous intensity 13750cd to 15000cd
CRI (Color rendering index) >95(R9 >80)
Power factor >0,8
Incandescent equivalence 66W
Lifespan 25000h
Warranty 2 years
STL21422/27 100-240Vac 2700K 740lm 10°
STL21422/30 100-240Vac 3000K 760lm 10°
STL21422/40 100-240Vac 4000K 780lm 10°

Visualização 360 3D

Visualização 360 Click to move image

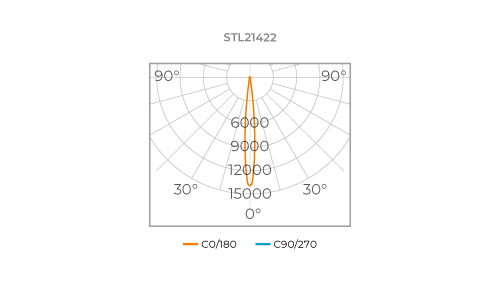

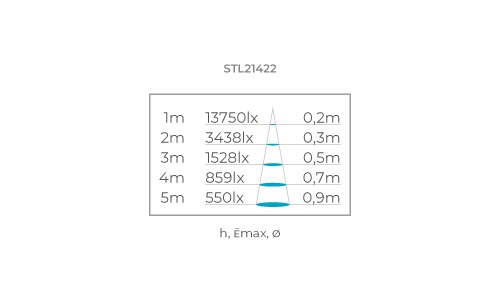

Graphics

AR111 PRO AR111 PRO

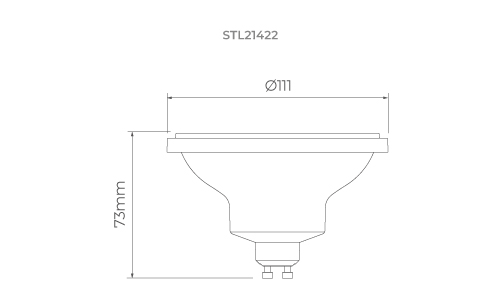

Technical drawing

AR111 PRO

Observations

 Up to batches  L. 030922 (for reference STL21422/27) and L.010723 (for reference STL21422/40), the following data should be considered:



For reference STL21422/27:
Luminous flux: 700lm
Luminous efficacy: 64lm/W
Incandescent equivalence: 60W



For reference STL21422/30:
Luminous flux: 740lm
Luminous efficacy: 67lm/W
Incandescent equivalence: 65W
