AR111 PRO
11W
Power740lm
Luminous flux24°
Beam angle
Precision and intensity are what characterize our ARs PRO’s originality. With options like the 6° and 7° beam angles and dimmable versions, Stella’s ARs PRO offer several lighting possibilities for highlighting elements or for adding a scenic light to any space.
| Base | GU10 |
| Luminous efficacy | 67lm/W to 70lm/W |
| Luminous intensity | 3100cd to 3600cd |
| CRI (Color rendering index) | >95(R9 >80) |
| Power factor | >0,8 |
| Incandescent equivalence | 66W to 94W |
| Lifespan (L70) | 25000h |
| Warranty | 2 years |
| Operation temperature | -10 ~ 40°C |
X
| STL21423/27 | 100-240Vac | 2700K | 740lm | 24° |
| STL21423/30 | 100-240Vac | 3000K | 760lm | 24° |
| STL21423/40 | 100-240Vac | 4000K | 780lm | 24° |
3D
Click to move image
Photos
Graphics

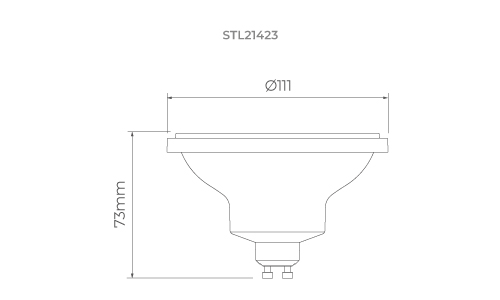

Technical drawing
Documents
STELLA - STL21423-27 - AR111 PRO 24° 11W.ies
STL21423_27_30_40.skp
STELLA - STL21423-27 - PACK - SKP.zip
STL21423_27_30_40.rfa
STELLA - STL21423-30 - AR111 PRO 24° 11W.ies
STELLA - STL21423-30 - PACK - SKP.zip
STELLA - STL21423-40 - AR111 PRO 24° 11W.ies
STELLA - STL21423-40 - PACK - SKP.zip
STELLA - STL21423-27-EU - PACK - SKP.zip
STELLA - STL21423-30-EU - PACK - SKP.zip
STELLA - STL21423-40-EU - PACK - SKP.zip
Observations
Up to batch L.030922 (for reference STL21423/27), the following data should be considered:
For reference STL21423/27:
Luminous flux: 700lm
Luminous efficacy: 64lm/W
Incandescent equivalence: 60W
