FOCCO 30°
LED INGROUND
LED INGROUND
5W
Power320lm
Luminous flux30°
Beam angleA complete series, that offers options for several outdoor applications. Focco presents LED Ingrounds, Spikes and spotlights in 3000K color temperature, to highlight natural elements and provide comfortable lighting. Their Ingress Protection showcases these products' high resistance when exposed in external spaces.
Luminous intensity | 1200cd |
Luminous efficacy | 64lm/W |
CRI (Color rendering index) | >80 |
Ingress protection rating (IP) | IP67 |
Power factor | >0,9 |
Prevailing material | Aluminum or Stainless steel |
Lifespan | 25000h |
Warranty | 2 years |
STH8706/30 | Stainless steel | 100-240Vac | 3000K | 320lm |
STH7706/30 | Black | 100-240Vac | 3000K | 320lm |
Graphics

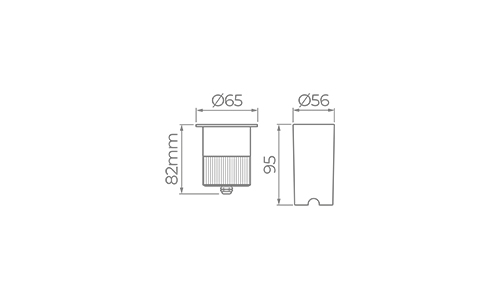

Technical drawing

Documents
STELLA - STH8706-30 - FOCCO INOX 30° 5W.ies
STELLA - STH8706-30 - FOCCO INOX 30° 5W_PACK.zip
STH8706_30.skp
Manual Embutido Focco_STH7706 STH7707 STH8707 STH8709 STH8716 STH8719_V5.pdf
STH8706_30.rfa
STELLA - STH7706-30 - FOCCO 30° 5W.ies
STELLA - STH7706-30 - FOCCO 30° 5W_PACK.zip
STH7706_30.skp
STH7706_30.rfa
Observations
Built-in driver.
Included plastic tube for installation.
Indicated accessory: IP68 Waterproof Wiring Box - STH9799.
